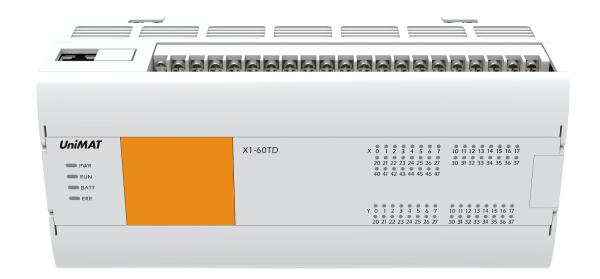

DC24V PLC Programmable Logic Controller Industrial Automation Using

Name: DC24V PLC Programmable Logic Controller Industrial Automation Using
Brand: Unimat
Price: 1 USD

Brand Name : Unimat

Model Number : X1-60TD

Certification : CE

Place of Origin : China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 6000pcs/month

Delivery Time : 2-8 days

Packaging Details : standard carton

Color : White

Fuse : 60V 2A

Input : NPN/PNP

Output : 16

Contact Now

DC24V PLC Programmable Logic Controller Industrial Automation Using

X1-60TD PLC for Industry Automation Low Cost PLC

Parameters

Item No.				Specifictions
Part No.				X1-60TD-E0
Voltage				DC24V
Voltage range				DC 20.4～28.8V
Allowed voltage				continue to operate for the instantaneous power failure less than 5ms
Fuse				60V 2A
Surge Current				12A,0.5ms below/28.8V DC
Power consumption				8W
DC24V power supply				600mA below
Input specifications

Input				36
Connection method				Detachable terminal block (M3 screw)
Input method				NPN/PNP
Input signal voltage				DC power supply type: dc20.4v ～ 28.8v
Input impedance		X0-X2		2.4K
		X3 above		5.6K
ON Input induced current		X0-X2		More than 5mA
		X3 above		More than 2.4mA
OFF Input induced current				1mA below
Input response time				No more than 4.5ms
Input signal form				Voltage free contact input
				Drain input: NPN open collector transistor
				Source type input:PNPOpen collector transistor
Input circuit isolation				Optocoupler isolation
Display of input				When the optocoupler is driven, the LED light on the panel is on
Output specifications

Output			16
Connection method			Detachable terminal block (M3 screw)
Output method			NPN/PNP
External Power supply			DC5～30V
Max load	Resistive load		0.5A/single point；0.8A/4 points
	inductive load		12W/DC24V
	Light load		High speed:2W/DC24V,common:5W/DC24V
Min Load			5mA(DC5～24V)
Open circuit leakage current			0.1mA以下/DC30V
Turn on resistance			High speed point 0.3Ω typical(Max0.6Ω)
response time		OFF→ON	High spend:10μs below/10mA above(DC5～24V)
			Ordinary :0.2ms below/200mA above (DC24V)
		ON→OFF	High spend:10μs below/10mA above(DC5～24V)
			Ordinary:0.2ms以下/200mA above(DC24V)
Loop isolation			Optocoupler isolation
Display of output action			When the optocoupler is driven, the LED light on the panel is on
Shield transmission distance			500M(ordinary output)
Unshielded transmission distance			150M(ordinary output)

Wiring Diagram
